ANSI Level 3 Cut Resistant UHMWPE/HPPE 340gsm Knit Fabric - Workwear Liner, Bag Reinforce, OEKO-TEX Certified

- Type: WH501-03
- Name: Woven Cut Resistant Fabric
- Materials: HPPE, GlassFibre, Polyester, Nylon
- Width: 150cm
- Weight: 340g/㎡
- Test Reports: ANSI CUT 3

  • Overview
  • Recommended Products
Product Description
Model Number: WH501-03
Width: 150cm
Weight: 340gsm
Content: HPPE+glassfiber+polyester+nylon
Feature: Cut Resistant
Standard: ANSI CUT A3   EN388: 2003 CUT 5
Function: Provides high-level cut and resistance for protective glove lining

Technical Sheet

Item

Unit

Technical Specification

Test Standard

Thickness

mm

0.72

JIS1096-2010

Basis Weight

g/m²

340±20

GB/T 4669-2008

Tensile Strength (Warp)

N / 25mm

3934.314

GB/T3923-2013

Tensile Strength (Weft)

N / 25mm

2453.988

GB/T3923-2013

Elongation at Break (Warp)

%

61

GB/T3923-2013

Elongation at Break (Weft)

%

13

GB/T3923-2013

Tearing Strength (Trapezoid)

N

1726

GB/T 19978-2005

Width

mm

1500

GB/T21665-2008

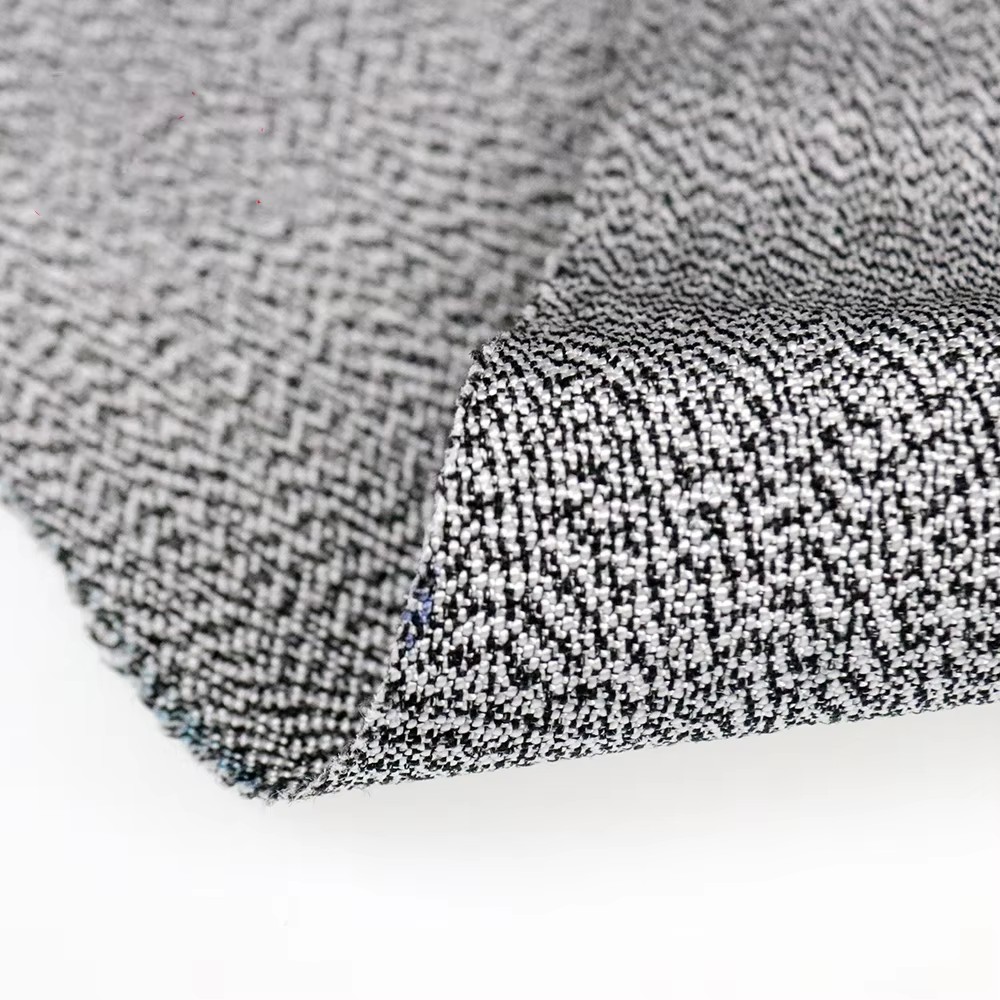

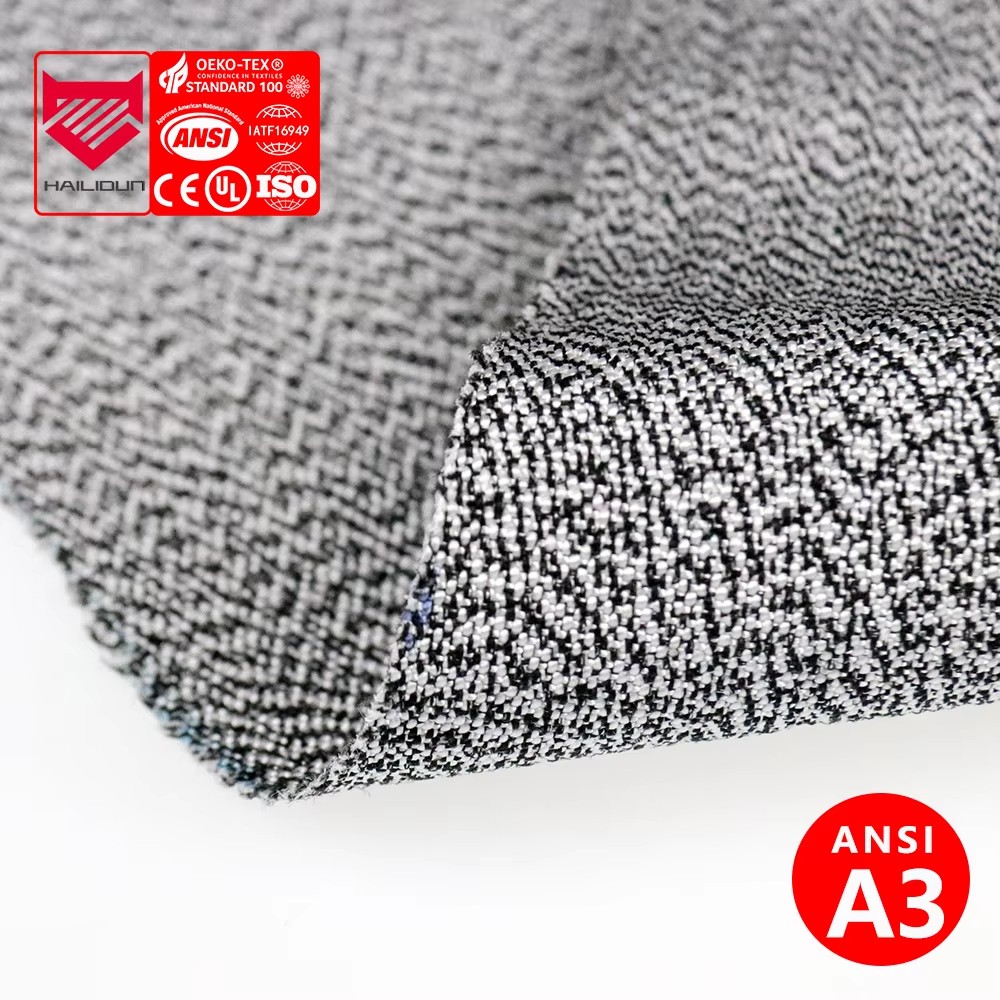

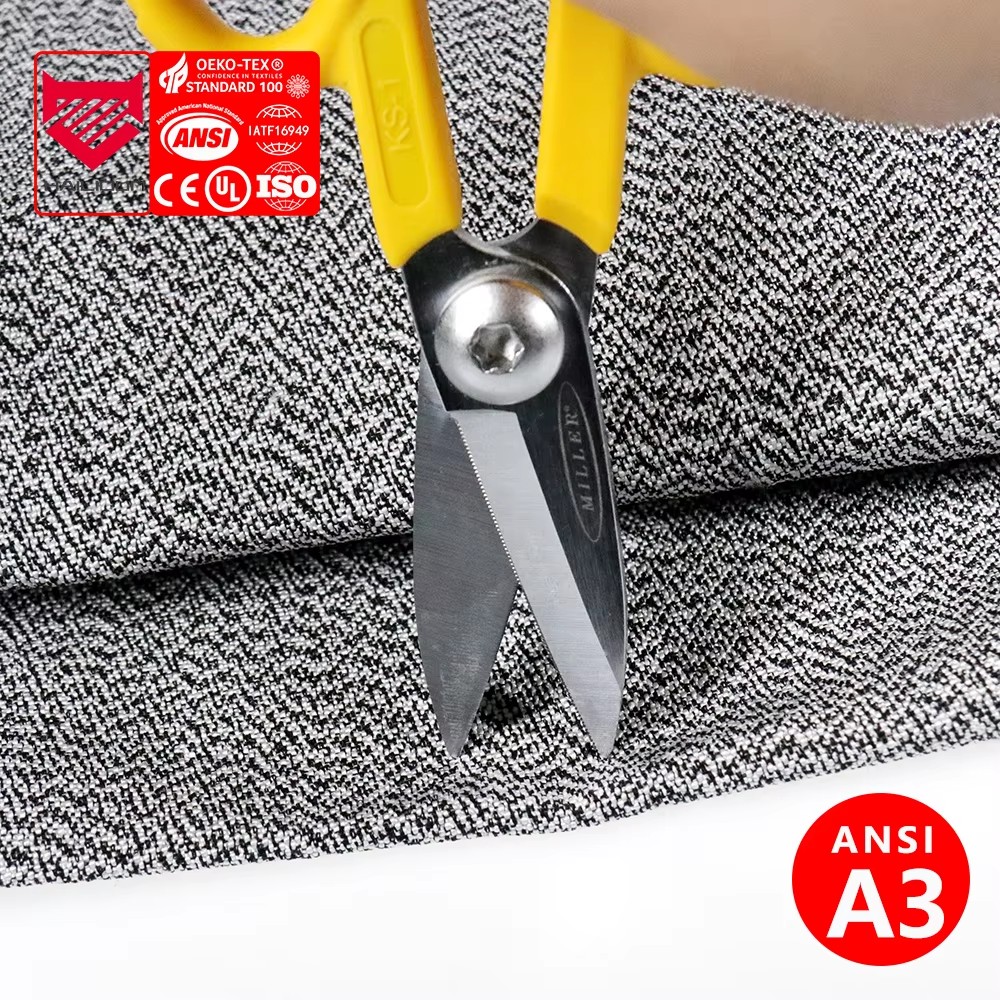

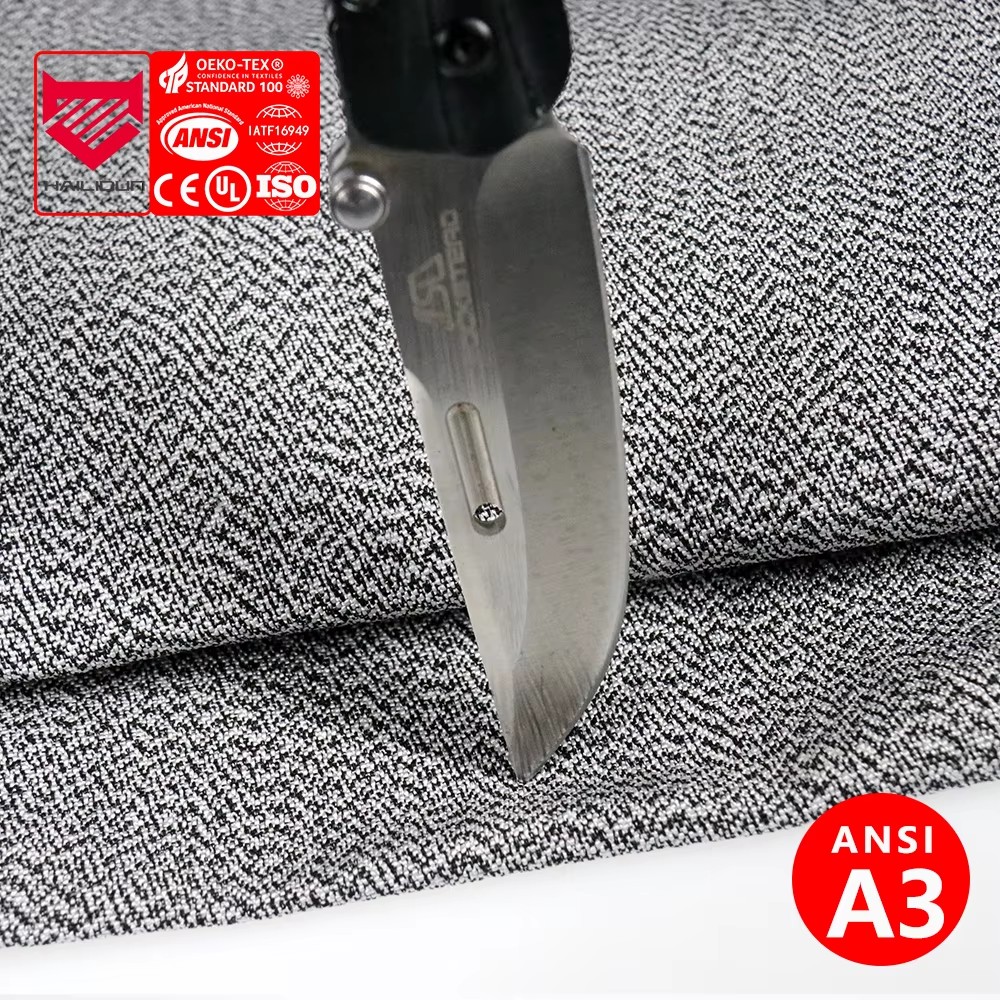

Product Details

Hbe6683420031413e8ee3dcf1235e392bx.avif.jpg  H4f3578041c584ef090559cf537e6852a9.avif.jpg

H770b3227e51d4ac3aa8d0a253f6733e1G.avif.jpg  H1143ee352ee34814b3dfbaa6cc6f72951.avif.jpg

Product Applications
